CE Certified Double Cage Construction Hoist

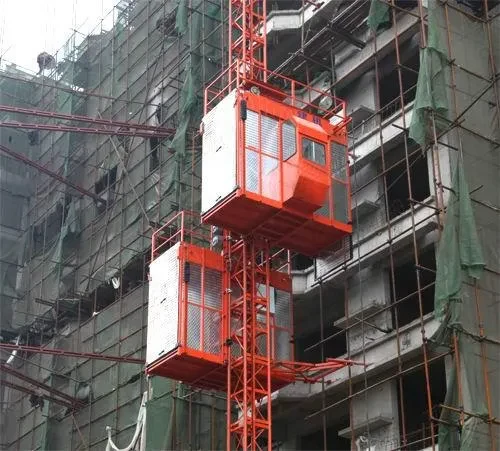

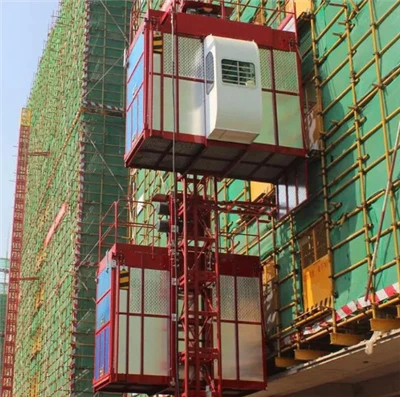

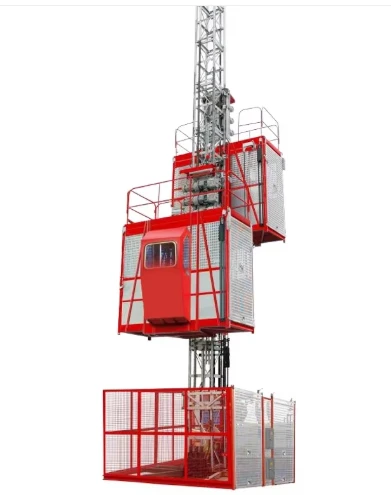

The double cage construction hoist is a  vertical transport machine designed for high-rise building sites. It safely carries construction crews and materials, boosting workflow and site efficiency on mid to large projects.Model SC200/200 holds 2000kg per cage, runs at 33 meters per minute, and can lift up to 150 meters (custom heights available).Mast sections are made of hot-dip galvanized steel for superior rust resistance and longer service life.Modular design allows easy assembly, disassembly, and height adjustment.

Safety features:Overload protection, anti-fall locks, upper/lower limit switches, emergency stop controls, all CE-compliant.

Performance:Variable frequency drive included, ensuring smooth starts/stops, lower noise, and about 15% energy savings.Two cages operate independently, reducing waiting times by 30-40% versus single cage units.

Applications:Used in residential towers, commercial complexes, bridge projects, and industrial plants.Engineered for heavy daily use with low maintenance costs.

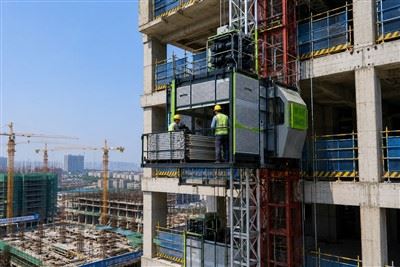

1.The construction hoist were installed for a 42-story office building in Dubai CBD. Each cage holds 2000kg and reached a full lifting height of 145 meters. They ran 12 hours a day for 18 months straight, and held up reliably even through summer temperatures of up to 45℃. The dual-cage setup cut waiting time by about 40%, helping the project finish 6 weeks ahead of schedule.

2. For a 38-floor apartment project in Jakarta, we deployed 2 double cage units. The two independently operating cages topped out at 120 meters. After 16 months of use in the hot and humid tropical climate, the galvanized frames showed no visible rust, and zero major safety issues were recorded throughout the project.

3.We supplied four SC200/200 double cage hoists for a residential development in Warsaw, Poland. Each unit reached a lifting height of 98 meters per building block. The variable frequency drive reduced power consumption by around 15% compared to the client's older equipment. With our technician providing on-site installation support, all units passed the local authority inspection on the first attempt.

  Tianjin Huizhi Import and Export Trading Co., Ltd. is a professional import and export enterprise integrating trade, service and solution provision. We are committed to providing high-quality products and efficient services for global customers, with rich experience in international trade and a professional service team.

1.One-year warranty on main parts from delivery date

2.Free technical guidance for first installation

3.24/7 online support for operation questions and troubleshooting

4.Regular follow-up visits within the warranty period

5.Original spare parts supplied at factory price after warranty expires

6.Optional on-site maintenance service by our technicians

Q1: What's the max load and height?
A1: Our standard twin-cage model lifts 2000kg per cage, reaching up to 150m. Height can be customized to suit your project.

Q2: Does it include full CE paperwork for customs?
A2: Yes, complete CE documentation is always included. It complies with safety standards and supports smooth import clearance and on-site checks in most regions.

Q3: Installation time and on-site support?
A3: A standard 100m unit generally takes a 3–4 person crew 3–5 days to assemble. We can also dispatch a technician to supervise installation and train your operators.

Q4: What's the real advantage of twin cage over single cage?
A4: The two cages operate independently, letting you move workers and materials simultaneously. This typically cuts queue time by about 40%, keeping the project flow faster.
