Name: China Cheap 5 Ton Custom Pillar Jib Crane XBD25-5 Manufacturers Suppliers Factory - Huizhi
Brand: Hugecrane
SKU: 308901798

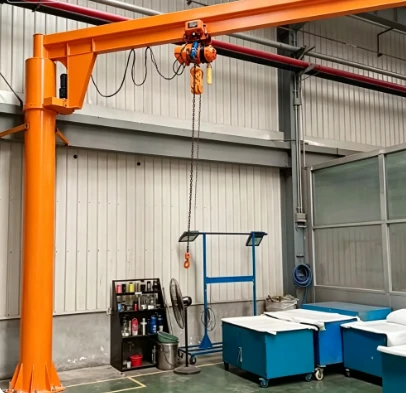

5 Ton Custom Pillar Jib Crane XBD25-5

XBD25-5 pillar jib crane is fixed workstation lifting equipment from Hugecrane with rated load of 5 ton, standard 6m span and 6m max lifting height, it can rotate 360 degrees fully. Made of hollow I-beam arm, it is light but strong to bear heavy loads, matched with electric hoist to lift and move goods horizontally, and the base fixed by anchor bolts offers great anti-tilt stability. This crane takes little floor space and fits narrow workshops and warehouses, we support custom service including load capacity from 0.25 ton to 5 ton, arm length and lifting height, and optional safety parts like overload limiter for high temperature, damp or dusty working sites. All units are delivered with mechanical test reports and factory inspection videos, covered by 1-year whole machine warranty, with online technical support and long-term original spare parts supply, widely used for material handling in machinery processing, warehouse logistics and hardware mold assembly.

Share to

Send Inquiry

Core Product Features

This jib crane only needs a small ground area for installation, which fits most narrow and busy workshop sites well. With 360° full rotation, it can handle lifting tasks flexibly without any blind spots. The hollow I-beam boom structure keeps the whole crane light, cutting down installation fees and power use. It stays steady and will not bend or deform even under 5-ton heavy load during daily work. This crane is equipped with reliable safety structures. The bolt-fixed base prevents the machine from tipping over, and optional overload and limit switch devices can effectively avoid operational risks. We support personalized customization for load capacity, boom length, lifting height and anti-rust surface treatment to adapt to different harsh working conditions. All products are strictly inspected before delivery with complete paperwork. We provide one-year warranty, round-the-clock online technical help and long-term supply of original spare parts for all orders.

Main Technical Parameters

product-344-493

Working Principle

The electric hoist lifts and lowers goods vertically with steel wire rope, slides left and right along the I-beam arm for horizontal adjustment, and the slewing device drives the arm to rotate 360 degrees horizontally. The three movements cooperate to realize flexible 3D lifting, one worker can operate the whole lifting process with remote control to reduce manual labor.

Customization Service

We provide custom on load capacity, arm length, lifting height and rotation angle. Anti-rust, heat-resistant and dust-proof structures can be customized for coastal damp, high-temperature metallurgical and dusty workshops. Extra parts such as wireless remote controller, explosion-proof hoist and overload protector are optional. Custom brand nameplate is free, we accept drawing and sample based modification.

Applicable Scenarios

Designed for fixed-point material transfer, it fits parts lifting in machining workshops, goods loading in warehouses, hardware assembly and mold moving in small factories. Compact size can be placed beside machine tools and production lines, replacing large overhead cranes to save purchase and operation cost.
